Posted:
15 April 2025, 07:02
ID: 4751
$14,400/set
Delivery terms:
FOB
Maria Li
sales manager
Description
Maximum rotation diameter over bed 560 mm
Maximum rotation diameter over carriage 310 mm
Maximum turning length 850 mm
Maximum turning diameter 560 mm
Width of guideways 450 mm
Spindle nose A2-8
Spindle speed range：4-steps, stepless
32-320 rpm
72-720 rpm
73-730 rpm
163-1630 rpm
CNC system HNC/FANUC
Spindle bore 86 mm
Main motor power 7.5 kW
Chuck size 250 mm
X/Z travel 400/890 mm
X/Z rapid traverse speed 6/8 m/min
Turret type 4/6/8-position turret
Tailstock quill diameter 80 mm
Tailstock quill stroke 150 mm
Tailstock quill taper MT5
X/Z axis positioning repeat accuracy 0.009/0.011 mm
Machine net weight 3000 kg
Machine dimensions 2830*1800*1780 mm
Characteristics
Condition
New
The owner of the ad has the most up-to-date information.
Still looking for:
Similar ads
11
+7 photo
Price
$12,500/set FOB
Max diameter of the workpiece over the bed: 500 mm
Max diameter of the workpiece over the support: 280 mm
Max length of the workpiece in centers: 750/1000/1500/3000 mm
Diameter of the hole in the spindle: 52/80/105 mm
CNC Fanuc/Siemens/GSK
1 Apr
11
+7 photo
Price
$50,000/set FOB
Maximum rotation diameter 700 mm
Maximum turning diameter 350 mm
X/Z axis travel 200/550 mm
Y axis travel ±45 mm
Bed angle 30°
Spindle bore diameter 62 mm
Workpiece diameter up to 51 mm
Spindle motor power 11 kW
12-position drive turret BMT55 SAUTE (Germany)
CNC Fanuc/SYNTEC
31 Mar
11
+7 photo
Price
$33,000/set FOB
Maximum rotation diameter 650 mm
Maximum turning diameter 500 mm
Chuck diameter Hydra. 15”
Main motor power 15/18.5 kW
Spindle speed range 50-1200 rpm
Tool turret type: 8-position turret
CNC Fanuc/Siemens/SYNTEC/GSK
1 Apr
Maria Li
sales manager
Other company ads
11
Price
$33,000/set FOB
Dalian eden machine tool, LLC, CN
Maximum rotation diameter 650 mm
Maximum turning diameter 500 mm
Chuck diameter Hydra. 15”
Main motor power 15/18.5 kW
Spindle speed range 50-1200...
11
Price
$12,500/set FOB
Dalian eden machine tool, LLC, CN
Max diameter of the workpiece over the bed: 500 mm
Max diameter of the workpiece over the support: 280 mm
Max length of the workpiece in centers:...
10
Price
$24,600/set FOB
Dalian eden machine tool, LLC, CN
Worktable size 1000*550 mm
Max. Travel along X/Y/Z axes 800/550/550 mm
CNC Fanuc/Siemens/SYNTEC/KND
Maximum table load weight 600 kg
Distance from...
7
Price
$42,000/set FOB
Dalian eden machine tool, LLC, CN
Max. X-axis travel: 1100 mm
Max. Y-axis travel: 600 mm
Max. Z-axis travel: 600 mm
Table (L*W): 1200*600 mm
CNC Fanuc/Siemens/SYNTEC/KND
11
Price
$45,000/set FOB
Dalian eden machine tool, LLC, CN
Max. diameter over bed 800 mm
Max. diameter over support 480 mm
Through hole diameter 280 mm
Max. workpiece diameter 270 mm
Center distance...
See more ads in the category Metal lathes
Contacts
Representative
Maria Li
Sales manager
Contacts
Telegram
Say, that you found an ad on Flagma
Safety rules: Do not agree to prepayment if you are not sure about the reliability of the user.
Write a message
Dalian eden machine tool, LLC
Maria Li, Sales manager

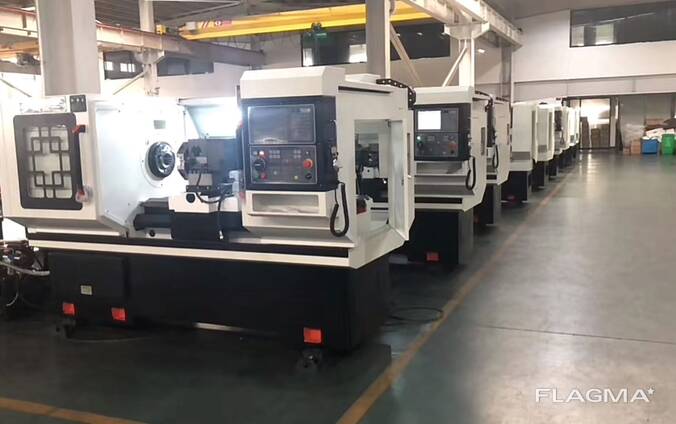

Cnc lathe machine model ED560
