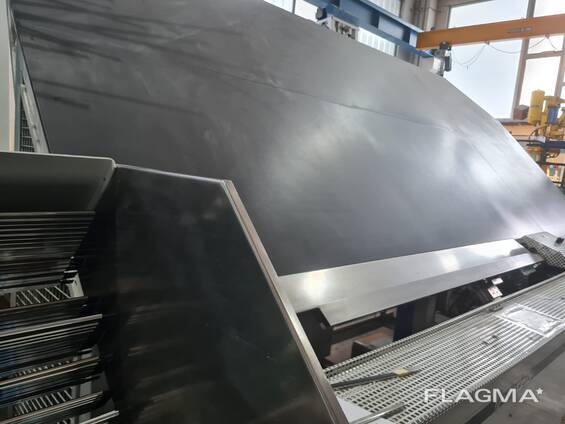

FOREL PBN 6.32 A4 - Year 2008

FOREL PBN 6.32 A4 - Year 2008
Automatic Profile Bender
Acceptable spacer hollow profiles from 6 to 32 mm. (from 0,23" to 1,26")
Minimum spacer frame dimensions (rectangular reference) 100 mm x 150 mm (3,93" x
5,9")
Maximum spacer frame dimensions (rectangular reference) 1600 mm x 2000 mm (63"
x 78,7") one piece (no limits with several pieces)
Shapes allowed infinite
Edge bending from 0° to 155°
Radius of curvature allowed (from 3,93" to 157,5") (profiles
thickness from 6 to 18 mm) (from 0,23" to 0,7")
from 200 to 4000 mm (from 7,87" to 157,5") (profiles
thickness from 20 to 32 mm) (from 0,78" to 1,26")
Productivity:
spacer frame in aluminium and different plastics 150÷160 spacer frames/hour
spacer frame in carbon steel ~ 100 spacer frames/hour
spacer frame in stainless steel 70÷80 spacer frames/hour
(TGI, Thermix, Inox)
Chromatec with thicknesses 10 12 14 15 16 18 20 22 24
